Injection RIM Piston Machine

INJECTION PISTON RTM / SQRTM

Our piston is a machine allowing the injection of Resin Transfer Molding (RTM), Infusion, and SQRTM(Same-Qualified Resin Transfer Molding) of EPOXY resin under pressure in a closed mould.

Our injection piston is suitable and used especially in the aerospace industry requiring precision and reliability, it allows to work at flow of 15 to 2500 (cc/min) with an accuracy of ± 1 (cc/min) and pressures at 0 to 30 bars with an accuracy of ± 0.1 bars.

With our piston, we have experience with the following resins:

  • HEXCEL : HexFLow® RTM 6, HexFLow® RTM230ST, HexFLow® RTM 250ST, HexFLow® RTM 6-2, HiFLow® HF610 FS, HiFLow® 1078-1
  • SOLVAY CYTEC : PRISM EP 2400, PRISM EP 2410 and PR 520
  • WESTLAKE : EPIKOTE®

It is thanks to its qualities that it has found an important place in the applications of research and production within the predominant actors in the aerospace sector pushing ever more the limits of the possible.

You think that the inecjtion Piston could be adapted to your application?

Contact us by mail or with the form at the bottom of the page and discover the possibilities of our machines adaptable to your application!

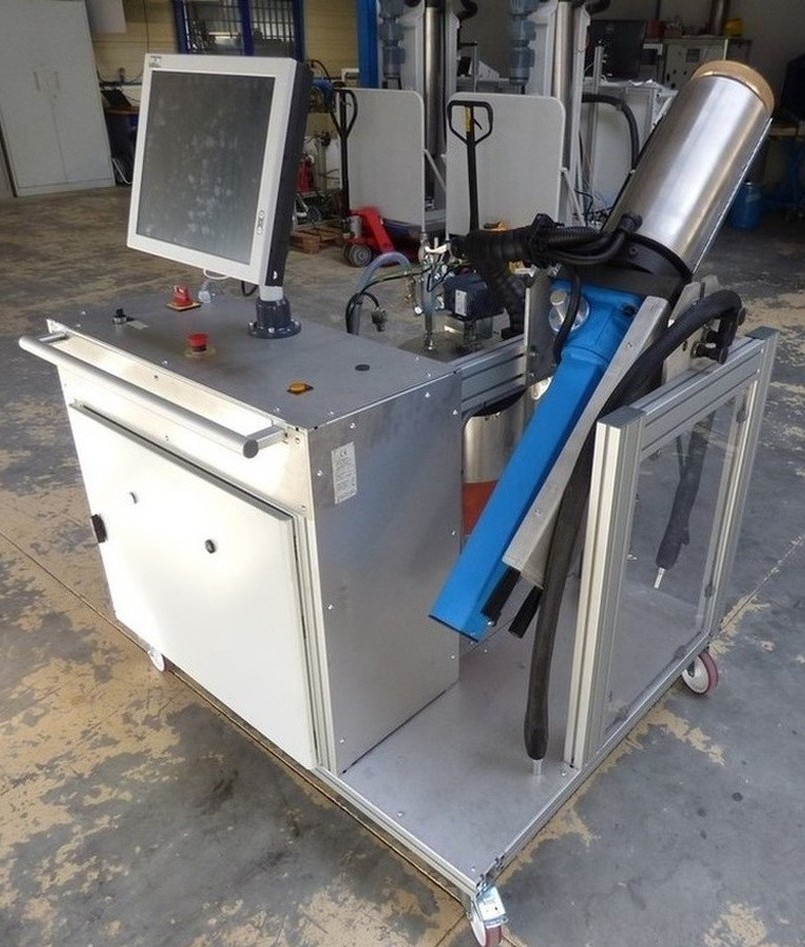

Injection piston

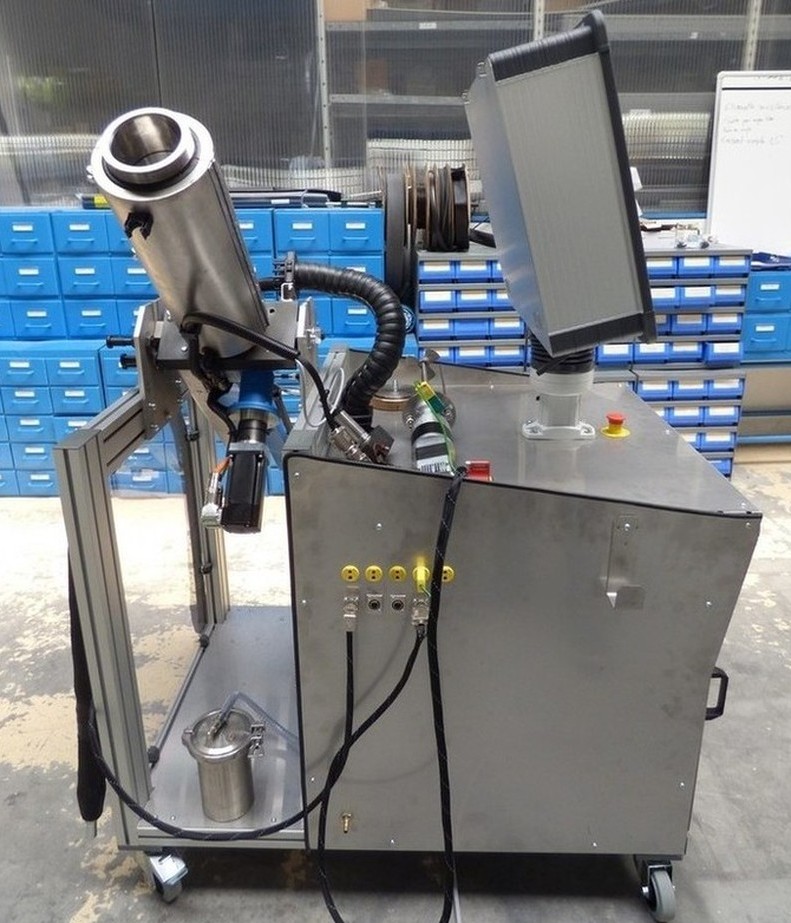

Injection piston

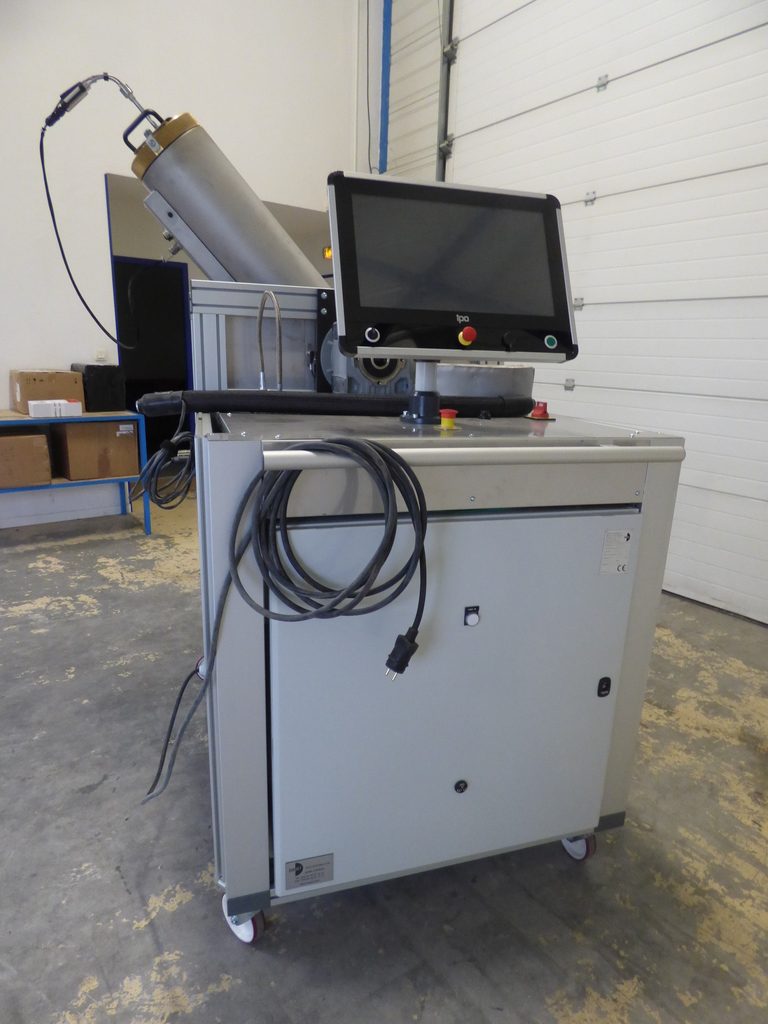

Injection piston

CHARACTERISTICS

  • Flow (cc/min) : 15 to 2500 ± 1 (cc/min)
  • Pressure (bars): 0 to 30 ± 0.1 bars
  • Injection volume 3L to 15L
  • Resin processed : EPOXY
  • RTM/SQRTM injection compatible
  • Working temperature up to 170°C
  • Power supply : 230V /400V
  • Monitoring : Schneider Citect / SQL
  • Mould test
  • Motorized piston rotation
  • Hourly operating lap counter
f

OPTIONS

  • Preparation tank
  • Stirring / Degassing
  • Working temperature up to : 300°C
  • Cap heating
  • Languages other than French and English
  • Unit change
  • Additional heating hose
  • Thermocouple extension
