Home 9 Machines 9 DPE HV – HIGH VISCOSITY
DPE High Viscosity

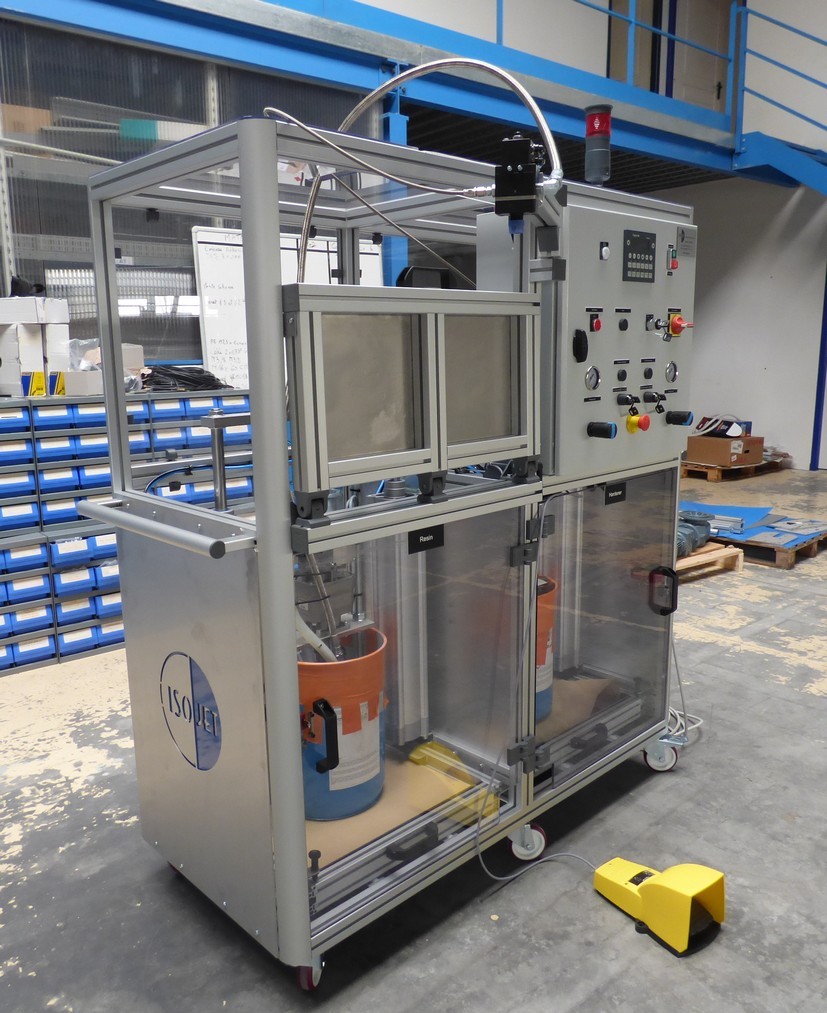

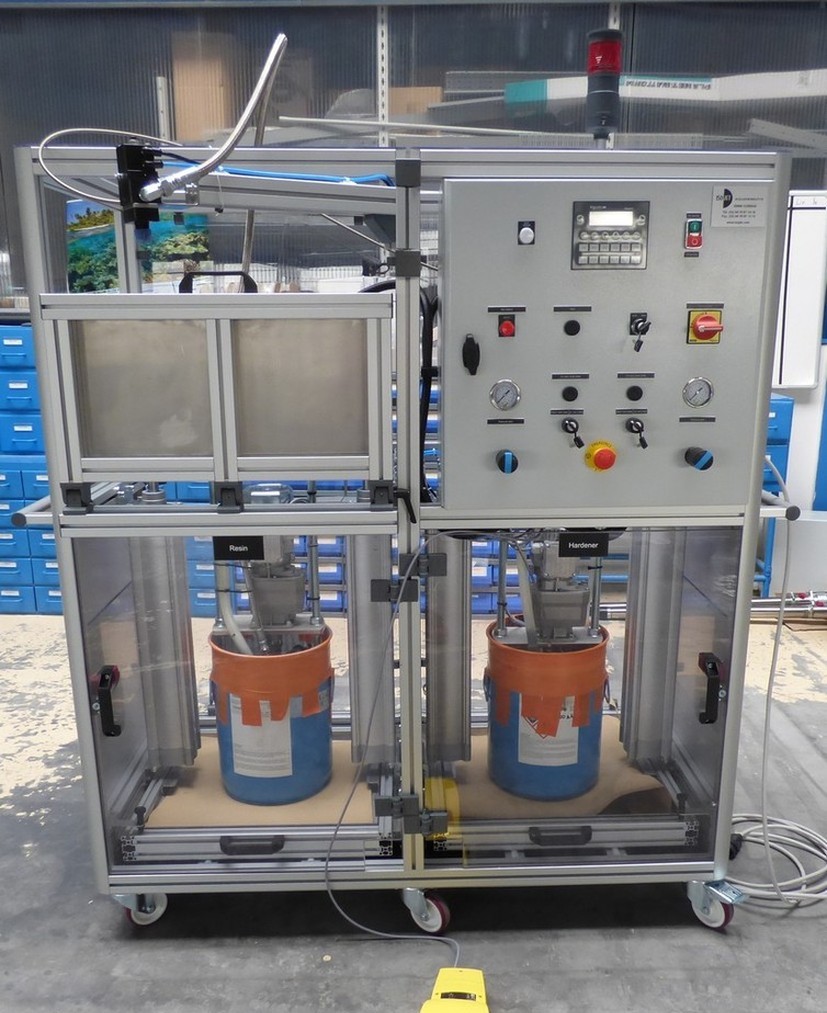

DPE HV – HIGH VISCOSITY

Our DPE HV machine for High viscosity resin from 70,000 mPas to more than 1,000,000 mPas and pasty two-component resins is perfectly suited for bonding and sealing applications in the industrial sector.As with all of our dosing machines we use disposable static mixers because they have the advantage of avoiding the use of cleaning solvents and allow precise dosing to be obtained.

This machine is equipped with variable flow and ratio as well as an intuitive interface developed internally, which allows the programming of casting recipes, it is the ideal machine for all industrial bonding applications;thsi machine allows to porcess of 1K or 2K resins from : KÖMMERLING, HENKEL / LOCTITE, CHEMETALL or SIKA

Whether in the automotive sector, industrial bodywork, renewable energies or aerospace, DPE HV has been supporting SMEs and large groups for many years in their industrial projects.

You think that the DPE HV could be adapted to your application?

Contact us by mail or with the form at the bottom of the page and discover the possibilities of our machines adaptable to your application!

DPE High Viscosity Resin
Machine for High Viscosity Resin
High Viscosity Resin Machine

CHARACTERISTICS

  • Flow rate (cc/min) : 50 to 1000 – Possible 3000 according viscosity
  • Mix ratio : 100/10 to 100/100
  • Viscosity resins (mPas) : 70,000 to 1,000,000+

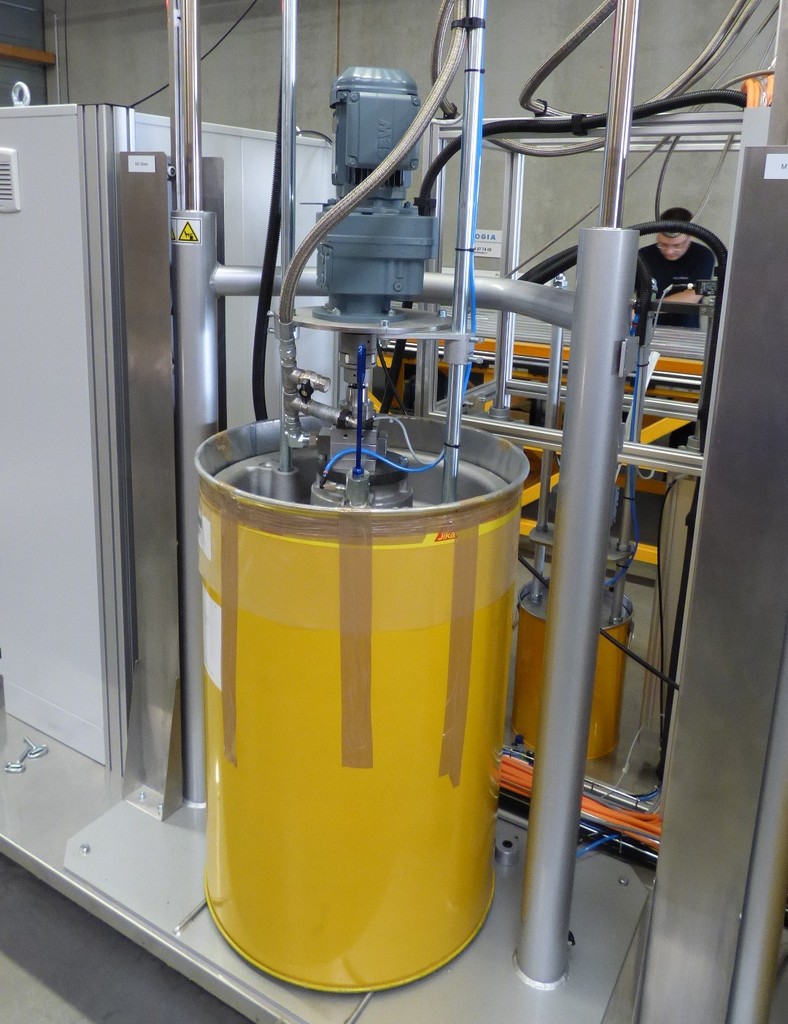

  • Drums : from resin manufacturer : 20L/30L
  • Resins type : PU / EPOXY / SILICONE
  • Power supply : 230V / 400V
  • 10″ Touchscreen
  •
f

OPTIONS

  • 200L drum
  • Heating parts : plates, hoses, pumps, mixing head
  • Fixed or mobile mixing head
  • Flowmeter
  • Slides drawers
  • Drum scan
  • Heating belt
  • Stainless trays
  • Data and curves recovery
